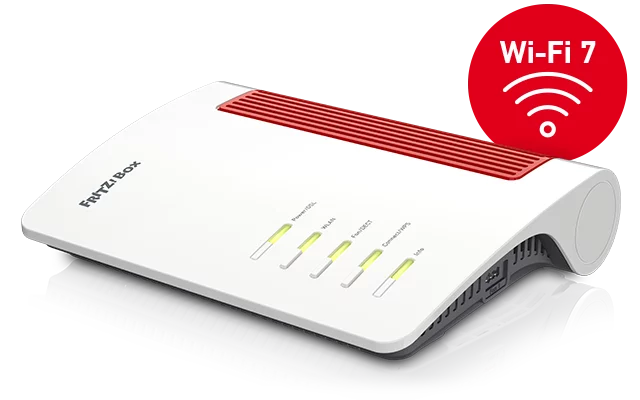

AVM FRITZ!Box 7690 – Official Thread

[UK Sentinel]

The new FRITZ!Box 7690 follows the FRITZ!Box 7590, and supports Wi-Fi 7.



Technical specifications

Interfaces

• 1 x DSL connection, supports VDSL (including supervectoring and ADSL2+)
• 1 x 2.5 gigabit WAN/LAN port, can also be used as a 2.5 gigabit LAN port (IEEE 802.3bz standard, NBASE-T)
• 1 x 2.5 gigabit LAN port (IEEE 802.3bz standard, NBASE-T)
• 2 x gigabit LAN (10/100/1000BASE-T)

• Wi-Fi 7 on 2.4 and 5 GHz
• USB 2.0 port for storage media and dongles
• DECT base station for up to six handsets
• 2 x a/b ports (RJ11) for connecting analog phones, answering ma

DSL / Network

• Wireless router with built-in modem for DSL connections
• Supports VDSL connections up to 300 Mbit/s (including supervectoring) and ADSL2+
• Supports VDSL Long Reach
• Compatible with Deutsche Telekom Annex-J lines
• Use of existing internet connections via LAN
• Router operation with a cable modem, fiber optic connection or 3G data dongle (LTE/UMTS/HSPA)
• Powerful processor: networked applications such as IPTV, video on demand and music streaming

• Stateful Packet Inspection Firewall with port sharing for secure surfing
• NAT, DHCP server, DynDNS client, UPnP AV
• Supports IPv6 for internet, home network and telephony
• Secure remote access, LAN-to-LAN linkup and dial-in to the company network with VPN (WireGuard and IPSec)
• Parental controls with time budgeting, youth protection module
• Security wizard with diagnostic tool
• Wake on LAN via the internet
• LEDs can be dimmed manually or based on room brightness



Wi-Fi

• 4×4 Wi-Fi 7
• Wi-Fi 7 at up to 5760 Mbit/s (5 GHz) and 1440 Mbit/s (2.4 GHz)
• Compatible with the IEEE 802.11a/g/n/ac/ax/be wireless standards
• Extend your home network with Mesh Wi-Fi via a LAN connection – simply combine two or more wireless access points into one intelligent system.
• Wi-Fi network encryption with WPA3/WPA2
• AVM Stick & Surf: Browse the internet securely and without any cables

• Wi-Fi can be turned on/off via “WLAN” button and/or connected telephones
• Wi-Fi Protected Setup (WPS)
• Wi-Fi guest access – secure surfing for friends and visitors
• Wi-Fi auto channel: Automated search for an interference-free Wi-Fi channel
• Wi-Fi eco mode for optimum performance at minimum power c



Read more…

https://en.avm.de/products/fritzbox/fritzbox-7690/

Share the knowledge

Attachments:

1.



In a completely sane world, madness is the only freedom (J.G.Ballard).

You need to login in order to vote

[UK Sentinel]

The FRITZ!Box 7690 will be available from 3 June (in Germany) for 329 euros (RRP) and the FRITZ!Box 5690 Pro will be available in stores (in Germany) in June for 369 euros (RRP).

https://en.avm.de/about-avm/press/press-releases/2024/06/june-brings-new-fritzbox-power-for-fiber-optic-and-dsl-connections-with-wi-fi-7-to-customers-in-germany/

Unsure if there is going to be an international versions ?

Share the knowledge

In a completely sane world, madness is the only freedom (J.G.Ballard).

You need to login in order to vote

[UK Sentinel]

Product:	FRITZ!Box 7690

Version:        FRITZ!OS 7.62

Language:       Dutch, English, French, German, Italian, Polish, Spanish

Release date:   27/08/2024

**New features:**

- - provider specific enhancements

https://download.avm.de/fritzbox/fritzbox-7690/

Share the knowledge

In a completely sane world, madness is the only freedom (J.G.Ballard).

You need to login in order to vote

[UK Sentinel]

Product: FRITZ!Box 7690

Version: FRITZ!OS 8.02

Language: Dutch, English, French, German, Italian, Polish, Spanish

Release date: 16/01/2025
`

# Top functions of FRITZ!OS

– **TOP** User interface: Diagram showing the connections in the overview (homepage)
– **TOP** New graphic Online Monitor informs about the utilization of the internet connection and on the utilization by individual network devices
– **TOP** Internet: IPv6 data now can also be transferred via a WireGuard® VPN tunnel
– **TOP** Mesh: Graph in new design with additional functions
– **TOP** Push service: Reworked design and more convenience
– **TOP** DECT: The number of DECT telephone calls possible concurrently was increased from three to five.

https://download.avm.de/fritzbox/fritzbox-7690/
