Zyxel XMG3927-B50A – G.fast

[UK Sentinel]

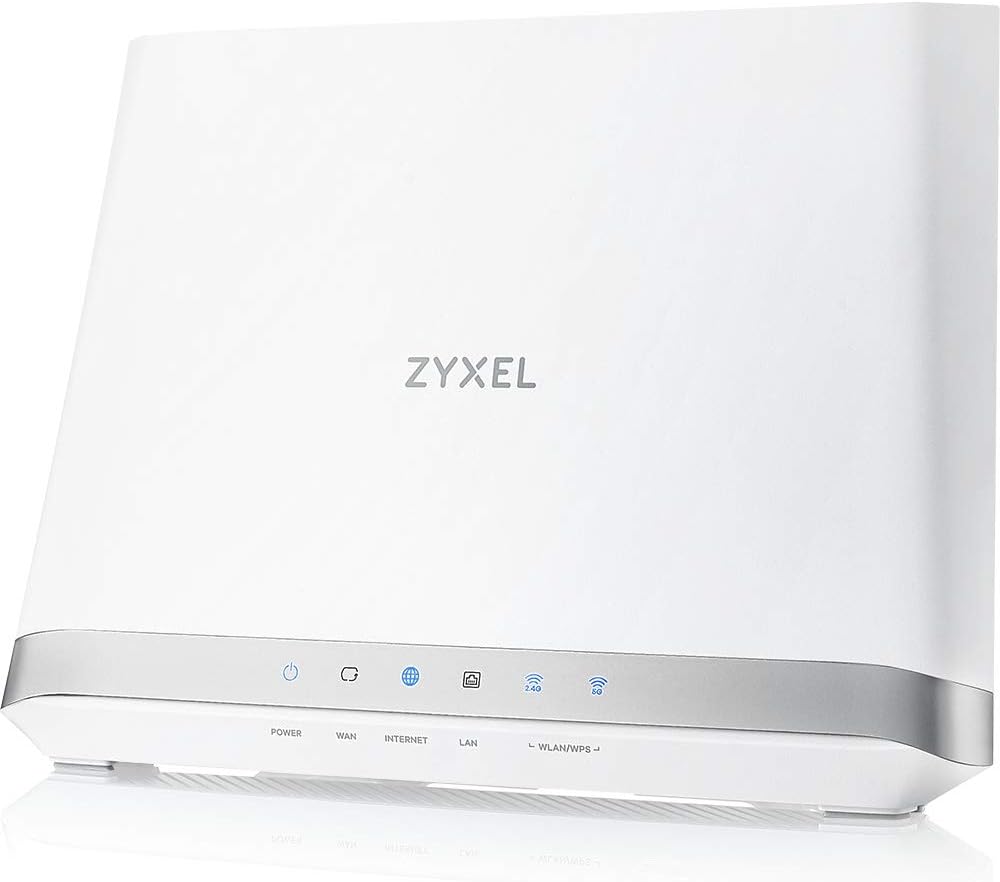

Zyxel XMG3927-B50A

An expensive but tweak-able Modem Router that supports G.fast and has a Broadcom chipset

Specs:

Zyxel XMG3927-B50A Gateway and Controller 10, 100, 1000 Mbit/s – Access Point (AES,WMM,WPA2-PSK, 10, 100, 1000 Mbit/s, IEEE 802.11ac, IEEE 802.11n, 1.7 Gbit/s, Ethernet (RJ-45), 220 mm)

Share the knowledge

In a completely sane world, madness is the only freedom (J.G.Ballard).

You need to login in order to vote

[UK Sentinel]



Access to online view only manual (English) for the Zyxel XMG3927-B50A

https://drive.google.com/file/d/1UfU5mbOplHCKC7zLVOpclYJ9CkIGs2ew/view

Share the knowledge

In a completely sane world, madness is the only freedom (J.G.Ballard).

You need to login in order to vote

[thunderbird]

I own this G.fast Modem. Great router. Can access to DSLStats for G.fast stats:

xdslctl info –stats
xdslctl: ADSL driver and PHY status
Status: Showtime
Last Retrain Reason: 1
Last initialization procedure status: 0
Max: Upstream rate = 42688 Kbps, Downstream rate = 239093 Kbps
Bearer: 0, Upstream rate = 42600 Kbps, Downstream rate = 238805 Kbps

Link Power State: L0
Mode: G.fast Annex A
TPS-TC: PTM Mode(0x0)
Trellis: U:ON /D:ON
Line Status: No Defect
Training Status: Showtime
Down Up
SNR (dB): 3.1 3.1
Attn(dB): 38.6 0.0
Pwr(dBm): 0.0 4.0

Since Link time = 4 days 8 hours 34 min 33 sec
FEC: 1503914 1903349
CRC: 0 0
ES: 0 0
SES: 0 0
UAS: 0 0
LOS: 0 0
LOF: 0 0
LOM: 0 0
Retr: 0
HostInitRetr: 0
FastRetr: 0
FailedRetr: 0
FailedFastRetr: 0
NTR: mipsCntAtNtr=0 ncoCntAtNtr=0
ZySH>



The wifi was excellent getting throughput speed of 228 down and 42 up.

Share the knowledge

You need to login in order to vote

[UK Sentinel]

Welcome, yes the Zyxel XMG3927-B50A with its Broadcom chipset does seems to work well and wifi from what I have read in the past is also good for an all-in-one unit.

IPv6 on BT used to be an issue but alas not sure if this was ever resolved.

Share the knowledge

In a completely sane world, madness is the only freedom (J.G.Ballard).
